1. High performance

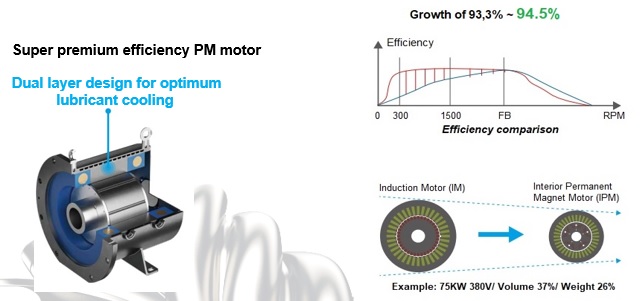

- Oil-cooled motor.
- Reach IE4 efficiency standard.
- VSD: variable speed drive
- Bearing free motor requires zero maintenance.
- Fully enclosed IP65 protection.
- Reach IE4 efficiency standard.
- VSD: variable speed drive.
- Bearing free motor requires zero maintenance.
- UH series Permanent magnets resist to 180 °C
- Optimal cooling for all speeds and ambient condition
2. Energy Saving Technology

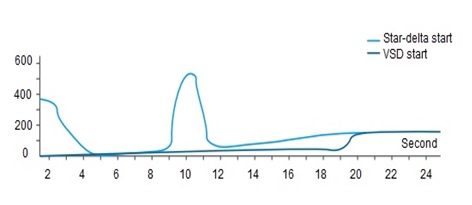

APM Series adopts a soft start system for its start-up. The Inovance VSD maintains full load current on start up to 1.5 times FLC-Traditional motor starters such as direct on line starters and star delta starters burden the power supply due to the high peak start up current which can typically be 8-10 times FLC. With variable speed soft start system, the starting current never exceeds the rated value.

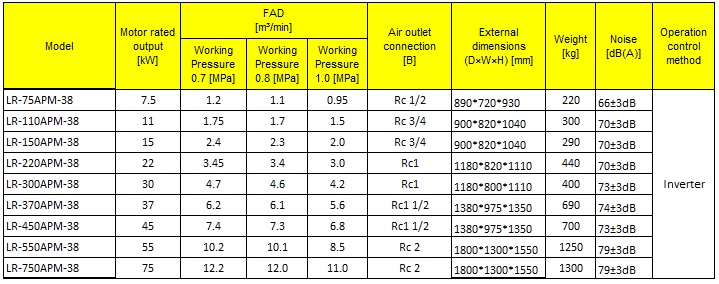

Technical Datasheet :
